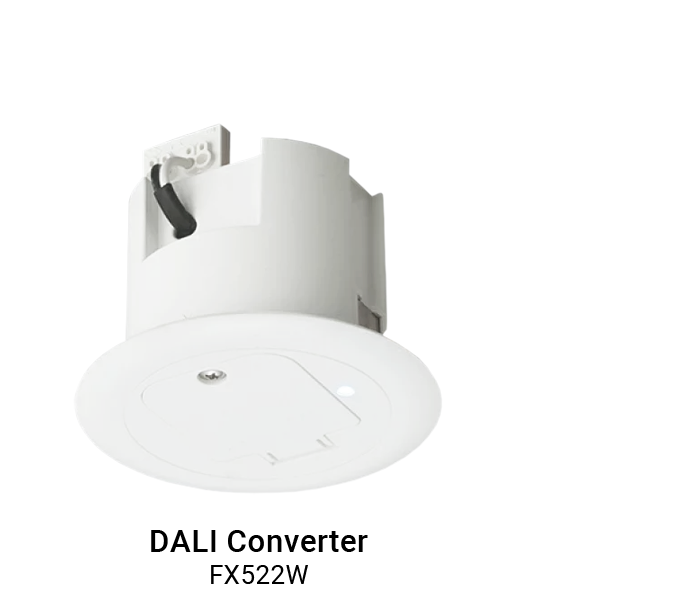

*1 About DALI Converters / DALI Masters
・Always confirm the compatibility between the DALI control device/controller and the DALI converter before installation.
・Ensure the DALI converter is connected to the same electrical circuit as the lighting fixtures it controls.
・The DALI control device and controller connected to the DALI converter must support DALI-2, DT8 (Synca, Tunable), or DT6 (dimming).
・A single DALI converter cannot control a mix of lighting types (dimming, Tunable, Synca).
・If both wireless and wired lighting fixtures are connected to one DALI converter, they will be controlled with the same dimming and color settings.
　To control them separately, use multiple DALI converters.
・Wireless and wired lighting fixtures may have different response times.

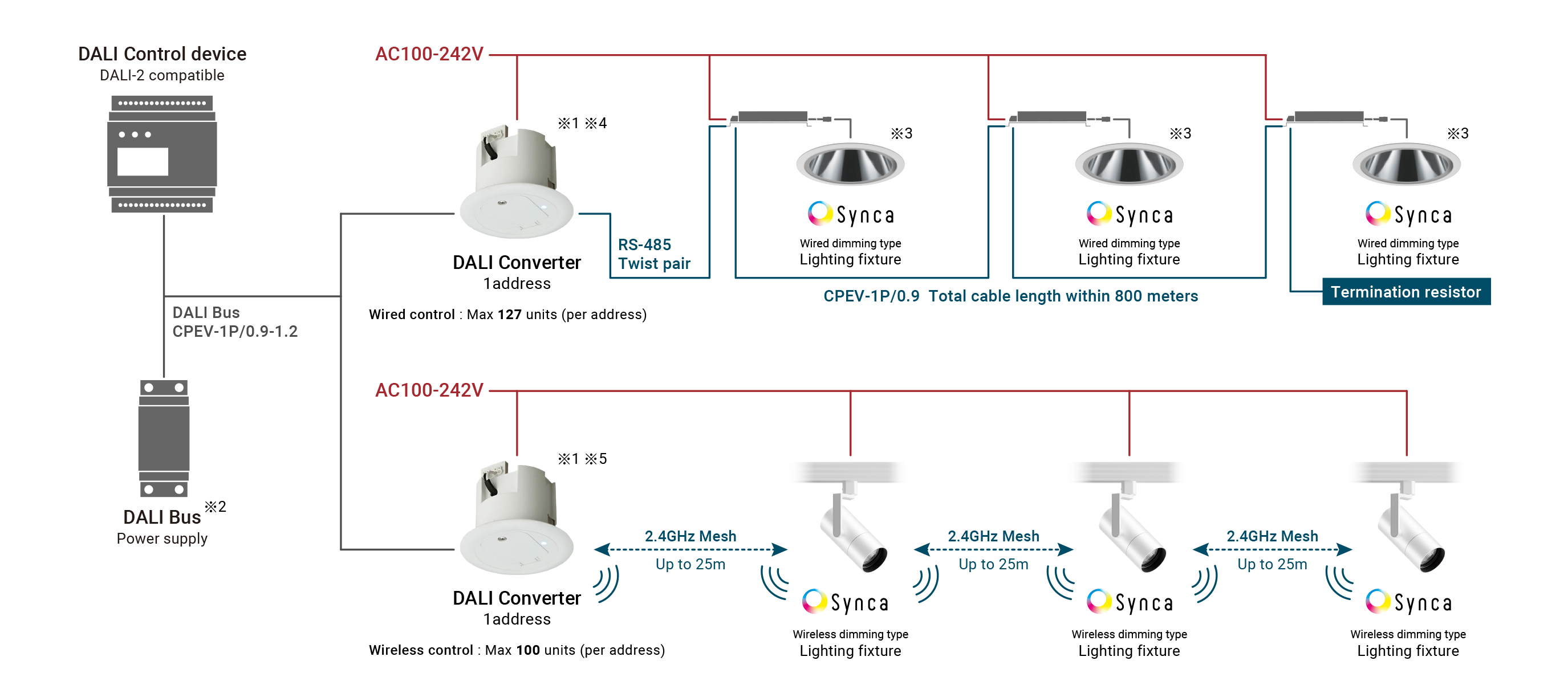

*2 About DALI Bus Power and Signal Wiring
・The total signal wiring length from the DALI master to the DALI converter should be:
　1.2mm diameter wire for up to 200m, or 0.9mm diameter wire for up to 150m.
・A separate DALIBus power supply may be needed. Each DALI converter uses 2mA/16V during normal operation.
　The DALIBus power supply should provide 2mA for each connected DALI converter.
・If the control device or controller has a built-in DALIBus power supply, no separate power supply is needed.
・The selection and installation of the DALIBus power supply should be handled by a system integrator.

*3 About Wireless Control of DALI Converters
・For wireless control, register the DALI converter and lighting fixtures using the Fit app.
・If using more than two DALI converters, each must be registered with a different mesh ID.

*4 About Output Signal Line RS-485
・The output signal line has polarity.
・Do not branch the output signal line to anything other than lighting fixtures.

*5 About Wired Control Lighting Fixtures
・Only lighting fixtures with a wired control power source (-L) are supported.
・For dimming, Tunable lighting fixtures, or Synca fixtures not set up for wired control, please contact our sales department for customization.
